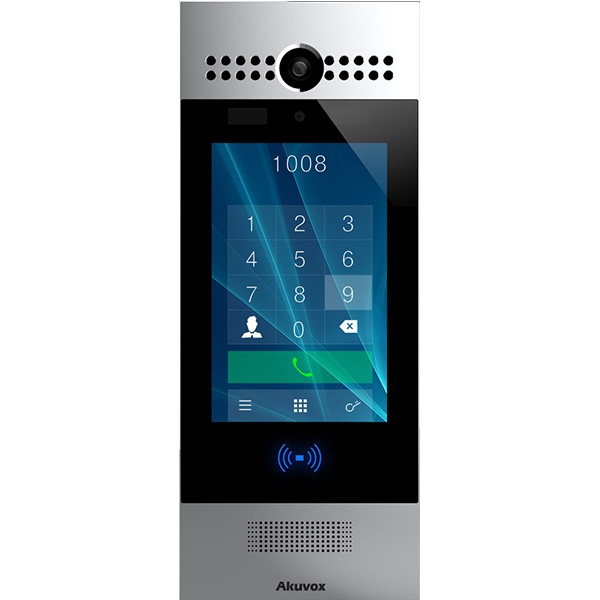

Akuvox R29S Smart Door Intercom

● 7-inch large touch screen
● Premium audio and video quality
● Real-time entrance monitoring
● Remote door opening
● Multiple access methods
● Android 5.1/SIP/ONVIF/Wiegand/PoE/IP65

Add to Compare


  • R29S is the industry’s most cutting-edge SIP-enabled IP video door phone featuring Android OS and a large capacitive touch screen. It enables easy monitoring of an entrance area and convenient entry control.
  • The ability of granting or denying access based on talking to and seeing your visitors as if in person, gives one a true sense of security and great peace of mind. Especially for a business, it eliminates the need for personnel to be physically stationed at the door/gate, which improves productivity and frees them up to work on other things.
  • Physical Features
    • Body material: aluminum panel
    • Display: IPS LCD
    • Screen: 7” capacitive touch screen
    • Camera: 3M pixels with IR Sensor automatic lighting
    • Power consumption: 12V DC input, <12W
    • G-sensor for tamper alarm
    • Enclosure rating: IP65
    • Collision-proof rating: IK06
    • Installation: flush mounting or wall-mounting
    • Dimensions: 324x130x27 mm
  • Entry Features

  • RF card reader: 13.56MHz & 125kHz
  • Digital keypad: Pass Number
  • Facial recognition: 32 points of recognition
  • Other biometric method: gesture

Interface Features

  • 1xRJ45 10/100M Mbps Ethernet port
  • Output relay: 2 relays for door opener
  • Relays controlled individually by DTMF tones
  • RS485 port

SIP Features

  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Line: 2 SIP accounts

Audio Features

  • 1 built-in microphone with IP67 rating
  • 2W speaker with IP66 rating
  • Codec: G.711a, G.711μ, G.722 and G.729
  • Speech quality: 7 kHz
  • Echo cancellation
  • Voice activity detection
  • Comfort noise generator
  • Max. call length setting

Video Features

  • Viewing angle: 72º
  • Resolution: up to 720p
  • Image transfer rate: 720p@30fps max.
  • Camera permanently operational
  • Auto-night mode with LED illumination
  • Illumination: 0.1LUX min.
  • Auto white balance
  • Internal light sensor: image lighting during dark hours
  • Codec: H.263 and H.264
  • Support RTSP
  • Compliance with ONVIF

Network Features

  • Static IP or DHCP
  • NTP for auto time setting

Administration Features

  • Auto-provisioning: FTP/TFTP/HTTP/HTTPS/PnP
  • Configuration management: web- or touch screen-based management or auto provisioning

Application Scenarios

  • Office door phone with on-site or hosted IP-PBX
  • Control remote site entry over the internet
  • Perfect for apartment / flat intercom with door access control
  • Bonus function: business information display or a welcome screen


SIP Accounts



Display Size

HD Audio

Audio Intercom


Video Intercom


Video Resolution

3 Megapixel

Fingerprint Scanner


Pincode Access


RFID Reader


Wall Mountable

Flush Mounting


VPN Supported



Additional Powersupport


Vandalism Proof


3CX Certified


฿79,450.00 for 2 item(s)
