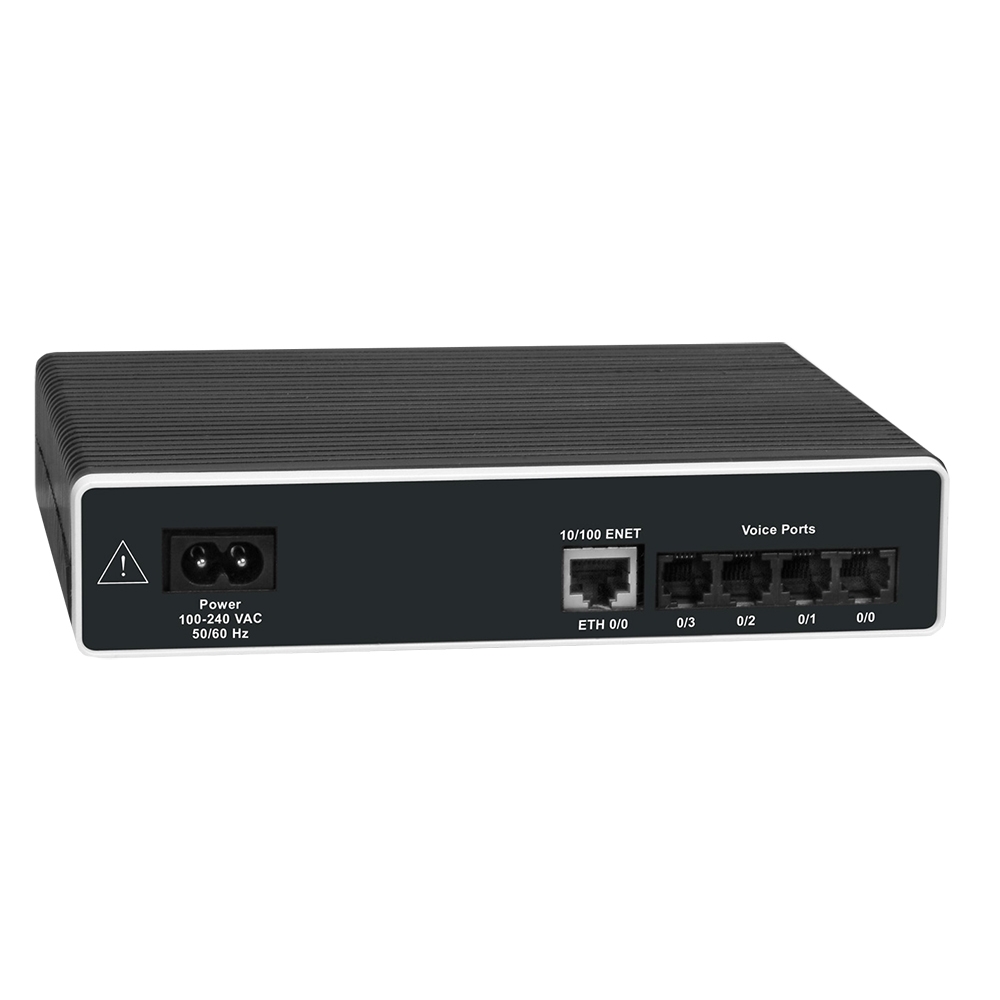

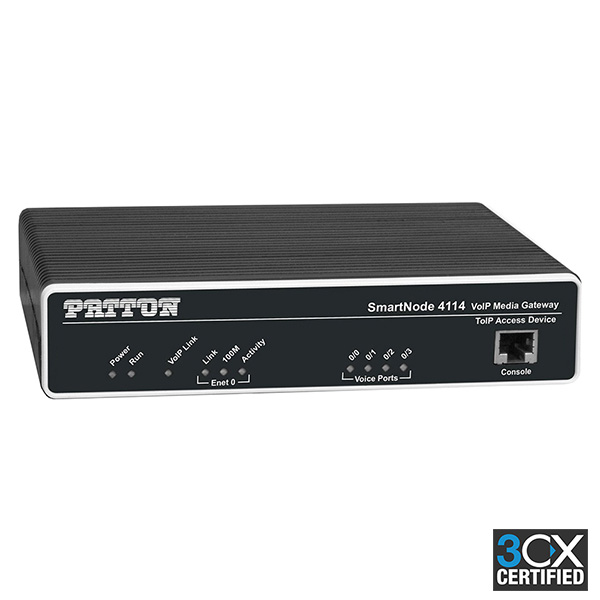

Patton SmartNode 4114 FXO

Quick Info:

  • 4 FXO ports
  • connects to PSTN lines
  • keep exiting landline numbers
  • fallback to PSTN network
  • T.38 FAX support
  • connects PSTN lines to a hosted PBX
  • add PSTN numbers from overseas

Compatible with:

  • Any IP PBX
  • Certified for 3CX

Available accessories:

  • none
Add to Compare
Availability:

In stock

฿11,950.00

In stock

Overview Smart Node 4110 FXO Gateway

The business-class SmartNode 4110 VoIP Media Gateway supports up to eight transparent phone calls and leverages VoIP for carrier and corporate access. Connecting to any analog phone, fax, or PBX, the SN4110 is an effective and flexible solution for toll-bypass, remote/branch office voice connectivity, and enhanced carrier services.

The SN4110 Series is the perfect choice for phone-to-IP connectivity supporting up to 4 FXO ports.  When equipped with FXO ports, the local PSTN can be accessed enabling local calling and enhanced toll-bypass applications while using a single connected telephone. Flexible call integration allows per-port telephone numbers, programmable call progress tones, and distinctive ringing. With Telephony-over-IP (ToIP) call switching, calls can automatically select the least-cost-route while providing flexible numbering plans and end-to-end feature transparency. PPPoE, DHCP, and VLAN offers universal IP connectivity and optional IPsec VPN with AES/3DES guarantees secure voice over the public network.

Patton’s SmartNode SN4110 Series delivers the legacy phone interfaces, service transparency, and flexible PSTN integration required for true converged packet voice.

Applications

Remote Office/Branch Office Voice Extension and Access

In enterprise networks, transparent access to PBX features while using existing equipment is key to low-cost operations. Now, instead of installing a separate PBX at the remote office, the SmartNode 4110 Series is able to provide transparent extension while simultaneously connecting multiple locations. The extensions can be managed centrally and benefit from PBX services such as calling groups, least cost routing, and call forwarding. PSTN access allows local calls to be processed without using corporate remote PBX resources.  Additionally, the corporate PBX can break-out and bypass any long-distance charges by using the remote office for the local gateway.



Features

  • Up to 4 FXO ports—Compact, reliable stand-alone VoIP gateway with different port options. Supports simultaneous voice or fax calls on all ports.
  • Advanced Local Call Switching—Virtual interfaces and routing tables provide industry leading flexibility in call handling programming. Local call switching, soft fallback to alternative routes. Simultaneously connects to multiple SIP services/IP PBXs.
  • Complete SIP and T.38 support—Supports the complete range of industry standard VoIP: SIP, H.323, T.38 fax, fax and modem handling, DTMF relay. Codecs G.729, G.723, etc.
  • Easy Management & Provisioning—Web-based management, SNMP, command line interface. Automated mass provisioning for efficient large-scale deployments.
  • Outstanding Interoperability—Proven integration for voice and T.38 fax with 3CX®, Asterisk™ and other leading IP PBX systems and soft switch vendors.
  • Supported by SmartNode™ Redirection Service: A free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers.
Manufacturer

Model

Gateway Type

FXO Gateway (PSTN)

Formfactor

Desktop

Network Connectivity

1x 10/100 Mbps port

VPN Supported

IPsec

Modular Design

N/A

RJ11 ports

4 ports

FXO ports

4x RJ11 FXO ports

FXS ports

N/A

GSM ports

N/A

PRI ports

N/A

RJ21 ports

N/A

Display Size

Supported Protocols

SIP

Supported Codecs

G.711, G.723, G.726, G.729ab

FAX Codecs

T.38, G.711

Management

via web URI

Provisioning

TFTP

3CX Certified

Certified
