Yeastar NeoGate TA1610 16 FXO Gateway

Quick Info:

  • 16 FXO ports
  • connects to PSTN lines
  • keep exiting landline numbers
  • fallback to PSTN network
  • FAX support
  • connects PSTN lines to hosted PBX

Compatible with:

  • Any IP PBX

Available accessories:

  • none
Add to Compare
Availability:

In stock

฿19,950.00

In stock

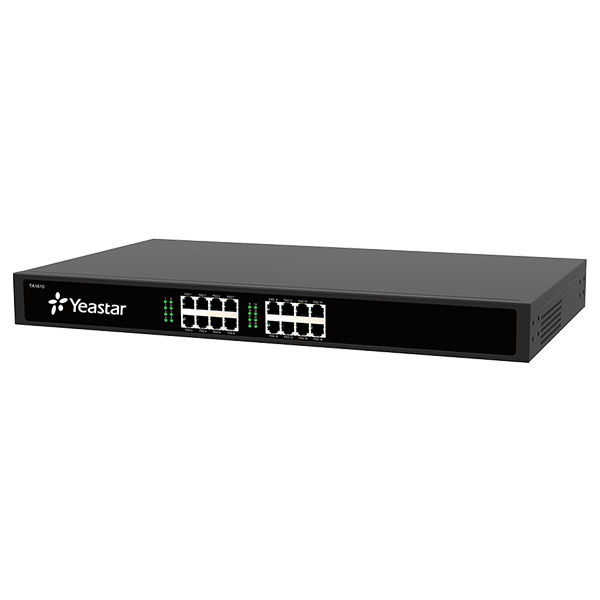

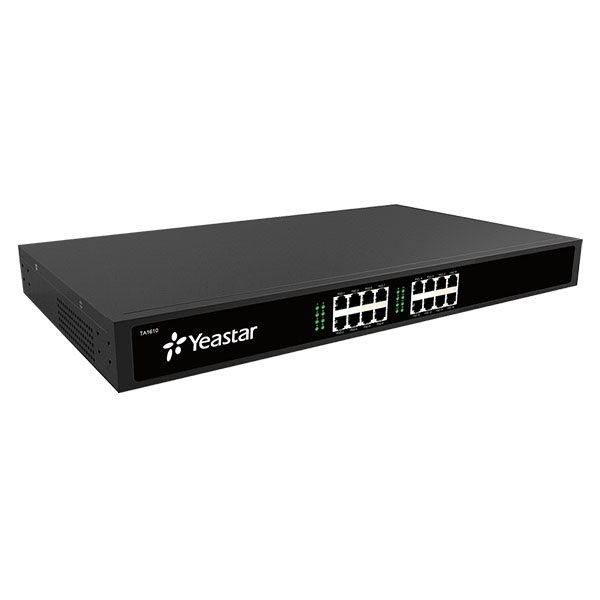

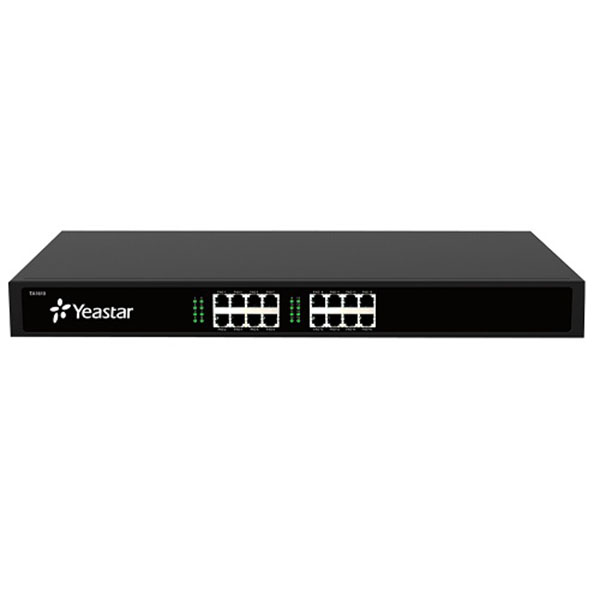

Yeastar NeoGate TA1610

The Yeastar NeoGate TA1610 gateway features 16 FXO ports. Deploy this gateway to connect lines from a PSTN to your VoIP phone system, for example. The gateway allows you to leverage your existing PSTN lines for calling, failover or other purposes. A number of essential call handling features are supported, including programmable AC impedance, hangup detection, answer detection and Caller ID detection.

Set up the Yeastar NeoGate TA1610 gateway on a desktop, featuring quiet operation. Also rack mount the gateway to keep it near your existing equipment or out of the way. The gateway supports T.30 fax and the SIP protocol, and is compatible with VoIP phone systems including 3CX, Asterisk and Microsoft Lync.

Yeastar TA1610 Gateway Quick Specs:

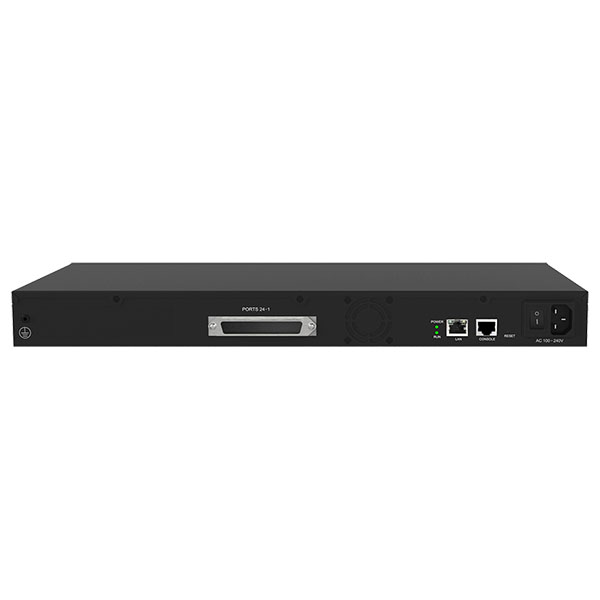

  • Connections: 16x RJ11 FXO, 1x RJ21 FXS
  • Switch Port: 1x 10/100Base-T Ethernet
  • Protocol Support: SIP, IAX2
  • Audio Codecs: G.711a/u-law, G.722, G.723, G.726, G.729A, GSM
  • Fax Codecs: T.30
  • Echo Cancellation: yes
  • QoS: supported
  • Management: via web UI
  • Dimensions: 17.32” x 9.84” x 1.73”
  • Mounting: desktop, rack

Yeastar TA1610 Analog VoIP Gateway Package Contents:

  • Yeastar TA1610 device unit
  • Power cord
  • Network cable
  • Warranty card
  • Quick installation guide
  • 2x mounting ears
  • 8x screws for mounting ears
  • Grounding stud and nut
  • 4x rubber feet
Manufacturer

Model

Gateway Type

FXO Gateway (PSTN)

Formfactor

Rackmount

Network Connectivity

1x 10/100 Mbps port

VPN Supported

yes, OpenVPN supported

Modular Design

N/A

RJ11 ports

16 ports

FXO ports

16x RJ11 FXO

FXS ports

1x RJ21 FXS port

GSM ports

N/A

PRI ports

N/A

RJ21 ports

1x RJ21 FXS

Display Size

Supported Protocols

SIP, IXA2

Supported Codecs

G.711, G.722, G.723, G.726, G.729A, GSM

FAX Codecs

T.30

Management

via web URI

Provisioning

TFTP, HTTP(S), TR-069 and SSH config

3CX Certified

Not Certified
