Panasonic PBX PSHTS824

Quick Info:

  • Onsite IP PBX with PSTN connectivity
  • Smartphone integration for Android & iPhone
  • designed for Office usage
  • small setups

Compatible with:

  • Bangkok, Thailand DID Numbers
  • Panasonic analog and IP Phones

Designed for:

  • businesses with basic needs
Add to Compare

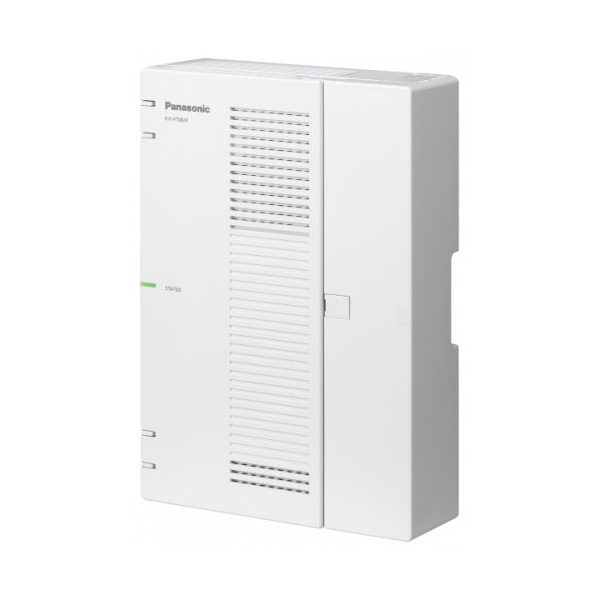

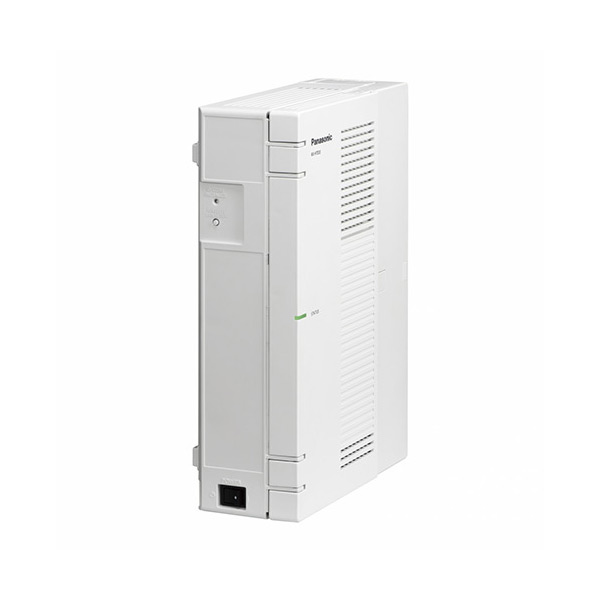

The Panasonic KX-HTS824BX Hybrid IP PBX is designed for Small Offices. Panasonics IP PBX allows connecting up to 24 extension phones. When connected with the Internet the PBX also allows configuring SIP Trunks, IP Phone remote extensions on IP and Mobile phones. Other features include an optional door phone (with camera) and a built-in Wi-Fi access point.

Panasonics Hybrid IP PBX is built in a modular way with optional FXO and FXS cards available to connect additional analog (PSTN) phone lines as well as additional analog phones via FXO cards.

Phone Lines: up to 10 SIP Trunks can be registered and up to 8 analog lines can be registered ( 4 analog FXO ports are preinstalled)

Extension phones: up to 24 SIP Extension phones can be registered or up to 24 analog extension phones can be registered ( 8 analog FXS ports are preinstalled)

Other functions include:

  • Call Detail Record shows all incoming, outgoing and missed calls
  • Ring Groups:  Assign different departments (like Sales, Support, Accounting of your company into ring groups
  • Music on hold: When transferring calls of your customer to other extensions or putting them on hold your clients will listen to music
  • HD Telephony lets you make phone calls in crystal clear voice quality via Internet
  • Message Waiting Light: A light on the IP Phone indicates left voicemail messages
  • The Busy Lamp field indicates the status of other extension phones in the system ( busy, ringing, available) for the Front desk manager
  • 24 Extensions: The Panasonic KX-HTS824 can support up to 24 extension phones
  • Concurrent calls: up to 12 people can make and receive calls at the same time
  • Phone Lines: Up to 8 analog phone lines and 10 SIP trunks can be registered
  • DND: ( Do not Disturb) Press a key on the phone and is will stop ringing
  • Voicemail 2 email: left voicemails will automatically forwarded to your email inbox
  • Office hours: The phone system can automatically change to voicemail when office hours are defined
  • Call Queues: Send incoming calls into a call queue if all lines are engaged

Interfaces & Technical Data:

  • Form factor: Desktop: L 297 mm x W 210 mm x H 90.4 mm
  • 1x USB 2.0 port
  • 1x LAN ports 10/100
  • 2x FXS ports to connect analog telephones
  • 4x FXO ports to connect analog (PSTN) telephone lines
  • VoIP codecs: G7.22 (wideband audio or HD)
    G.711 U/A (ISDN quality) G.7.29
  • Power Consumption: 60 watts

Interfaces & Technical Data:

  • 4 port FXO gateway card to connect analog PSTN lines
  • 8 port FXS gateway card to connect analog phones (up additional cards)
  • 2 ports door opener card to connect door phones to the device




Onsite / Hosted


Max extensions


Max concurrent calls


Max SIP Trunk registrations

up to 10

FXO ports (PSTN)

up to 8 (4 FXO modules preinstalled)

FXS ports (Phones)

up to 24 (8 FXS modules preinstalled)

BRI ports (ISDN)

Not Available

GSM/3G/4G Gateway

Not Available

PRI / E1 port built-in

Not Available

Virtual conference bridges






Smart phone integration


Call Reporting (CDR)


Fax sending / receiving

Not Supported


Not Available

Call Recording

Virtual Assistant (IVR)

Multi-level IVR

Hot Desking

Not Available

Music on Hold


PMS Integation

Not Available

Call Center features

Not Available



฿33,850.00 for 3 item(s)
